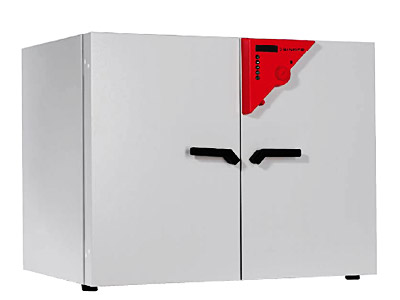

Binder Oven - FED Series

Heating ovens with forced convection

  • Electronically controlled APT.line? preheating chamber technology with forced convection
  • Temperature range of 5 C (9 F) above ambient temperature up to 300 C (572 F)
  • MS Controller with several timer functions
  • Controller timer functions: delayed ON, delayed OFF, temperature dependent delayed OFF
  • Digital teperature setting with an accuracy of one degree
  • One ramp function
  • Adjustable fan speed (0 to 100 %)
  • Independent adjustable temperature safety device, Class 2 (DIN 12880), with visual temperature alarm
  • Adjustable ventilation by means of rear exhaust duct O 50 mm (2 inch) with ventilation flap and front ventilation slide
  • RS 422 interface for communication software APT-COM? DataControlSystem, or switch over to printer output with RS 232/RS 422 interface converter
  • Adjustable intervals for printer
  • Units up to 115 liters (4.1 cu.ft.) are stackable
  • 2 chrome-plated racks
  • BINDER test certificate
Model
FED 53 FED 115 FED 240 FED 400 FED 720

Exterior dimensions

Width (mm/inch) 634 / 25.0 834 / 32.8 1034 / 40.7 1234 / 48.6 1234 / 48.6
Height (inclusive feet/castors) (mm/inch) 617 / 24.3 702 / 27.6 822 / 32.4 1022 / 40.2 1528 / 60.2
Depth (mm/inch) 575 / 22.6 645 / 25.4 745 / 29.3 765 / 30.1 865 / 34.1
Plus door handle, I-panel and exhaust duct (mm/inch) 105 / 4.1 105 / 4.1 105 / 4.1 105 / 4.1 105 / 4.1
Wall clearance rear (mm/inch) 100 / 3.9 100 / 3.9 100 / 3.9 100 / 3.9 100 / 3.9
Wall clearance side (mm/inch) 160 / 6.3 160 / 6.3 160 / 6.3 160 / 6.3 160 / 6.3
Exhaust duct outer- O (mm/inch) 52 / 2.1 52 / 2.1 52 / 2.1 52 / 2.1 52 / 2.1
Steam space volume (l/cu.ft.) 77 / 2.7 158 / 5.6 308 / 10.9 498 / 17.6 869 / 30.7
Number of doors 1 1 2 2 2

Interior dimensions

Width (mm/inch) 400 / 15.8 600 / 23.6 800 / 31.5 1000 / 39.4 1000 / 39.4
Height (mm/inch) 400 / 15.8 480 / 18.9 600 / 23.6 800 / 31.5 1200 / 47.2
Depth (mm/inch) 330 / 13.0 400 / 15.8 500 / 19.7 500 / 19.7 600 / 23.6
Interior volume (l/cu.ft.) 53 / 1.9 115 / 4.1 240 / 8.6 400 / 14.3 720 / 25.7
Racks, chrome-plated (number standard/max.) 2/5 2/6 2/7 2/10 2/16
Load per rack (kg/lbs.) 15 / 33 20 / 44 30 / 66 35 / 77 45 / 99
Permitted total load (kg/lbs.) 40 / 88 50 / 110 70 / 155 90 / 199 120 / 265
Weight of the unit (empty) (kg/lbs.) 44 / 97 62 / 137 96 / 212 145 / 320 195 / 430

Temperature data

Temperature range, 5C (9F) above ambient up to (C/F) 300 / 572 300 / 572 300 / 572 300 / 572 300 / 572

Temperature variation 1)

at 70 C (158 F) (} C) 0,8 0,7 0,8 1 1
at 150 C (302 F) (} C) 2 1,8 2 2,5 2
at 300 C (572 F) (} C) 3,7 3,9 4,3 4,8 5,5
Temperature fluctuation (} C) 0,3 0,3 0,3 0,3 0,3

Heating up time 2)


to 70 C (158 F) (Min.) 6 7 12 18 25
to 150 C (302 F) (Min.) 24 30 27 35 39
to 250 C (482 F) (Min.) 45 49 50 60 65

Recov. time after door was opened for 30 sec. 2)

at 70 C (158 F) (Min.) 2 2 2 2 2
at 150 C (302 F) (Min.) 5 8 10 17 20
at 300 C (572 F) (Min.) 10 15 16 21 24

Air change 3)

at 150 C (302 F) (x/h) 64 32 20 18 12

Electrical data

Housing protection acc. to EN 60529 IP 20 IP 20 IP 20 IP 20 IP 20
Nominal voltage (}10 %) 50/60 Hz (V) 230 / 115 230 / 115 230 / 208 (3N) 400 / 208 (3N) 400 / 208 (3N)
Nominal power (W) 1200 1600 2700 3400 5000

Energy consumption

at 70 C (158 F) (W) 145 230 370 520 570
at 150 C (302 F) (W) 300 544 850 1200 1320
at 300 C (572 F) (W) 720 1100 1400 2340 2600

1) value without window
2) up to 98 % of the set value
3) The air change depends on the inner chamber- and ambient temperature. Further measurement of air change rate in acc. to ASTM D5374 with definition and protocol are optional.

All technical specification are specified for units with standard equipment at an ambient temperature of 25 oC (77 oF) and a voltage fluctuation of }10 %.The temperature data are determinated in accordance to factory standard following DIN 12880 respecting the recommended wall clearances of 10 % of the height, width and depth of the inner chamber. All values have been specified at a fan speed of 100 %. All indications are average values, typical for units produced in series. We reserve the right to alter technical specifications at all times.





@
